Discover the power and performance of the Pratt & Whitney Canada PW300 jet engine series. With its innovative features, impressive performance, and model variations, the PW300 is the ideal choice for aircraft manufacturers and operators. Learn about the advantages of the PW300 engine today.
The aviation industry is constantly evolving, with new technology and advancements emerging every day. One such advancement that has caused a stir in the industry is the Pratt & Whitney Canada PW300 jet engine series. Designed to meet the demands of the modern aviation sector, this engine combines cutting-edge technology and sustainability, making it a standout performer in its class.
The PW300 is specifically designed to power business and regional jets, providing them with the necessary thrust and efficiency to deliver exceptional flight performance. It has established itself as a leader in its class, offering advanced features, outstanding performance, and unparalleled reliability with high hours before a TBO Extension or overhaul is needed. The engine’s popularity is a testament to its effectiveness, as it continues to be integrated into a growing number of aircraft models.
In this blog, we will take an in-depth look at the PW300 and explore the various features that make it a top choice in the aviation industry. From its innovative design to its performance capabilities, we will delve into the details that make the PW300 a true game-changer in the industry.
The PW300 jet engine is renowned for its range of innovative features that set it apart from its competition. One such feature is its advanced fan blade design. The fan blades of the PWC300 are designed to maximize engine efficiency and reduce weight, resulting in improved performance and fuel efficiency.
Another innovative feature of the PW300 jet engine is its state-of-the-art fuel control system. The fuel control system provides improved performance, resulting in reduced fuel burn and lower emissions. This makes the PWC300 jet engine an eco-friendly solution that helps to minimize the environmental impact of aviation.
In addition to these features, the PW300 is equipped with advanced materials and coatings that improve its durability and resistance to corrosion. These materials also enhance the engine’s performance, providing improved thrust and better fuel efficiency. Also designed with ease of maintenance in mind for aircraft maintenance companies, with features such as modular components and an engine control system that makes maintenance and repair easier and faster.
Overall, the innovative features of the PW300 jet engine have elevated the standards of performance and efficiency in the aviation sector.
With a single-stage fan driven by a three-stage low-pressure turbine and annular combustor, supercharging a four-stage axial/single-stage centrifugal high-pressure compressor, driven by a two-stage high pressure turbine the PW300 is renowned for its outstanding performance, delivering exceptional power for its size. With a high thrust-to-weight ratio, this engine provides the necessary thrust required for smooth and efficient flight. It is also designed for a smooth and quiet operation, making it a popular choice for business and regional jets.
In terms of fuel efficiency, the PW300 jet engine sets the standard for its class. Its advanced fuel control system provides improved performance, resulting in reduced fuel burn and lower emissions. This makes it a cost-effective solution for aircraft operators, as well as an environmentally-friendly choice.
The PWC300 jet engine has a proven track record of exceptional reliability, making it a sought-after choice for aircraft manufacturers and operators. Its ability to provide a smooth and efficient flight experience, combined with its low fuel consumption, has made it a popular choice for aircraft such as the Bombardier Learjet 60, Gulfstream G200, a few Cessna Citation models, Hawker 4000, and a few Dassault Falcon models.
The Pratt & Whitney Canada PW300 jet engine is a result of decades of innovation and development in the aviation industry. Its roots can be traced back to the 1970s when Pratt & Whitney Canada began exploring new and more efficient ways to power regional and corporate aircraft.
Over the years, P&WC has invested in cutting-edge technology, advanced materials, and innovative design techniques to create a family of engines that are unmatched in terms of performance, efficiency, and sustainability. The PWC300 jet engine is the result of this effort, combining the latest in engine technology with decades of experience and expertise.
The PW300 made its debut in 1998, developed in partnership with mtu who are responsible for the low pressure turbine, and since then it has become a leading choice for aircraft manufacturers and operators. Its exceptional fuel efficiency, outstanding performance, and ease of maintenance have made it a popular choice for a wide range of aircraft applications, from private jets to business jet applications, jet card operators, charter companies, and fractional aircraft ownership companies.
The PW300 jet engine family includes several different variants that are designed to meet the unique needs of various aircraft applications. Each model is optimized for specific requirements, offering varying thrust outputs, fuel efficiency, and performance capabilities.
Here is a table that provides a summary of the different models of the Pratt & Whitney Canada PW300 jet engine series, their specifications, and their applications:
Model Thrust (lb) & Applications
PW305A
4,680 lbf
Bombardier Learjet 60
Â
PW306A
5,700 lbf
Gulfstream G200
Â
PW306B
5,700 lbf
Dornier 328JET
Â
PW306C
5,770 lbf
Cessna Citation Sovereign
Â
PW306D
5,910 lbf
Cessna Citation Sovereign+
Â
PW306D1
5,800 lbf
Cessna Citation Latitude
Â
PW307A
6,400 lbf
Dassault Falcon 7X
Â
PW307D
6,720 lbf
Dassault Falcon 8X
Â
PW308A
6,900 lbf
Hawker 4000
Â
PW308C
7,000 lbf
Dassault Falcon 2000EX/DX
Each model of the PW300 jet engine is designed to meet the specific requirements of the aircraft it powers. For example, the PW307A is a new centre-line engine that is optimized for tri-jet application and longer-range missions and is used in aircraft such as the Dassault Falcon 7X. The PW308C engine is designed to provide a higher thrust output, making it suitable for aircraft such as the Dassault Falcon 2000EX/DX.
In conclusion, the PW300 engine family offers a range of models that are optimized for different aircraft applications. Each model provides exceptional performance, reliability, and efficiency, making the PW300 jet engine a standout performer in the aviation industry. Whether your aircraft requires a high thrust output or a more fuel-efficient solution, there is a model of the PW300 that is perfectly suited to meet your needs.
Controlled with a dual-channel Full Authority Digital Engine Control (FADEC) system, the PW300 is a true leader in providing flight excellence. Its impressive performance, combined with its innovative features and model variations, has established it as a top choice for aircraft manufacturers and operators.
One of the key factors that set the PW300 jet engine apart from its competition is its exceptional fuel efficiency. The PW300 provides a cost-effective solution for aircraft operators, helping to reduce operating costs and minimize the impact on the environment.
In addition to its fuel efficiency, the PW 300 is designed for smooth and quiet operation, making it a popular choice for business and regional jets. This makes for a comfortable and relaxing flight experience for passengers and a less stressful operating environment for pilots.
With its modular design, advanced materials, and engine control system, the PW300 aircraft engine is easy to maintain and repair, reducing downtime and ensuring that aircraft equipped with the PW300 jet engine is always ready to fly.
The Pratt & Whitney Canada PW300 has made a significant impact on the aviation industry, establishing itself as a top choice for aircraft manufacturers and operators. Its impressive performance, innovative features, model variations, and service and aog support have earned it a reputation as one of the most reliable and efficient engines in the industry.
The PW300 jet engine’s popularity has led to its widespread use in a variety of aircraft applications, from business jets to regional airliners. This has helped to increase its visibility and recognition, making it a well-known name in the aviation industry.
This engine’s impact has also been felt in the environmental arena. Its exceptional fuel efficiency has reduced the environmental impact of aircraft operations, helping to minimize the carbon footprint of aviation. This has made the PW300 series a popular choice for operators who are looking to reduce their environmental impact while maintaining high levels of performance and reliability.
Depending on the specific model and number of hours on the engine, a new Pratt & Whitney Canada PW305A engine can cost anywhere from $2 .5 million to $3.5 million.

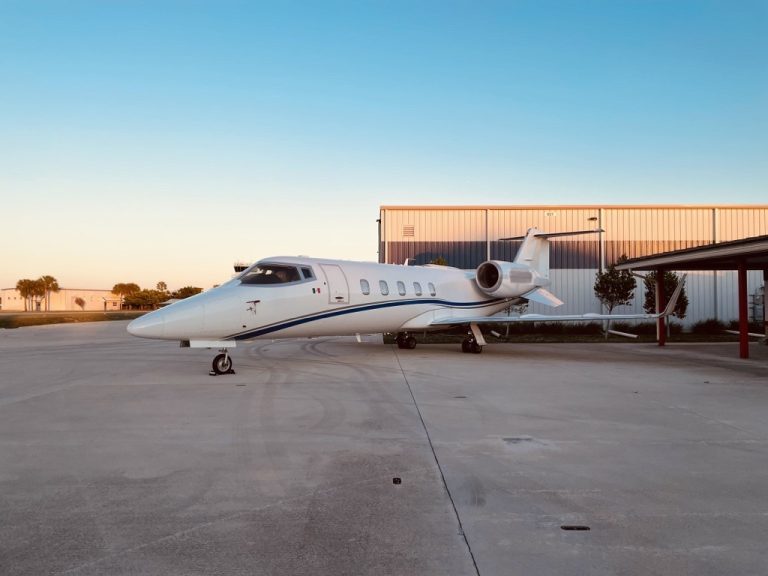

The Bombardier Learjet 60 is powered by two Pratt & Whitney Canada PW305A turbofan engines.
Please let us know if we can answer any questions about the PW300 Series engines whether you need maintenance, TBO Extension, or want to know more about the use of the pw305a in our Fractional Aircraft Ownership Learjet 60 fleet.
